22SV9PL4F60
22SV9PL4F60
Regular price
$13,440.00
Sale price
$13,440.00
Regular price

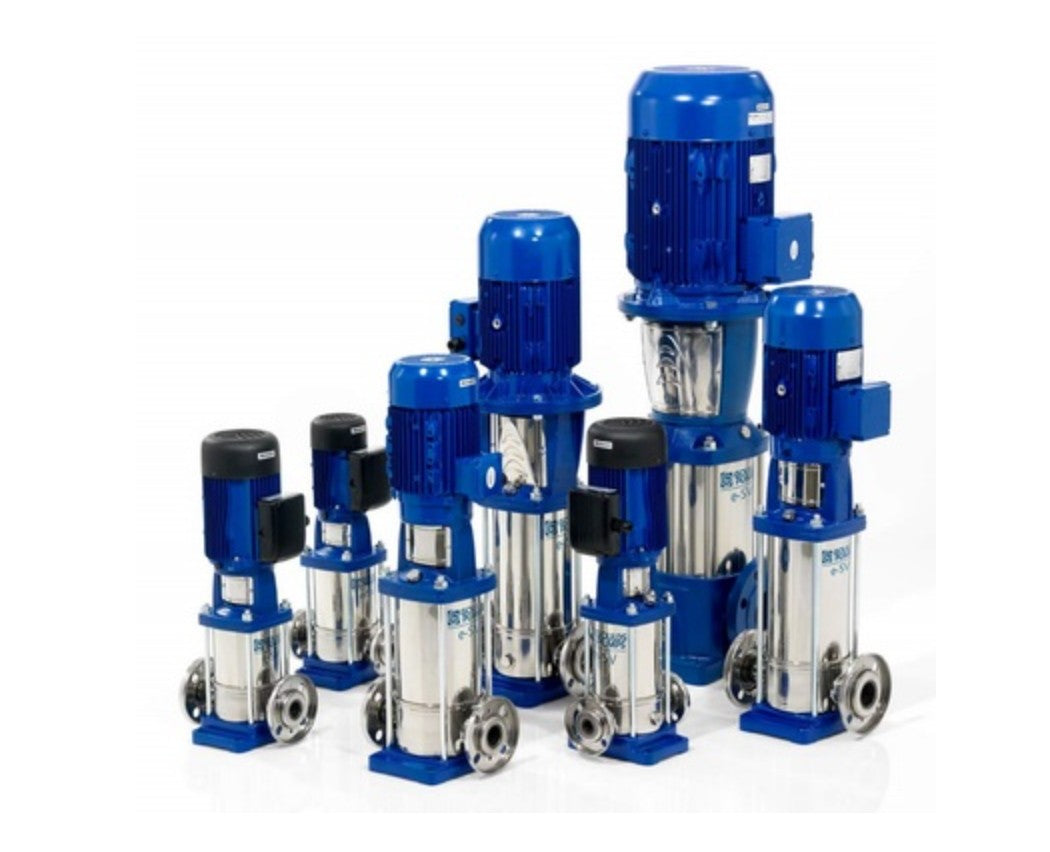

Goulds Pump & Motor Combo 22SV9PL4F60 e-SV Stainless Steel Series Vertical Multi-Stage Pumps, Victaulic - 316SS Configuration with 2" Connection, 20 HP, 208-230/460 Volt, 60 Hz, 2 Pole, Three Phase, 3500 RPM, Viton® Shaft Seal. TEPE - Totally Enclosed Fan Cooled (Premium Efficiency) Motor Enclosure, 9 Stages, 116 GPM Nominal Flow.
- Innovative axial load compensation system on pumps with higher head. This ensures reduced axial thrusts and enables the use of standard NEMA TC motors that are easily found in the market.
- Seal housing chamber designed to prevent the accumulation of air in the critical area next to the mechanical seal
- Mechanical seal according to EN 12756 (ex DIN 24960) and ISO 3069.
- Easy maintenance. No special tools required for assembly or disassembly.
| Capacities (GPM) | 21 - 150 GPM |
| Configuration | Victaulic - 316SS |
| Connections / Discharge (Inches) | 2" |
| Heads To (Feet) | 880 Feet |
| HP | 20 |
| Hz | 60 |
| Material | Stainless Steel |
| Maximum Working Pressure (PSIG) | 360/580 |
| Motor Enclosure Type | TEFC PE - Totally Enclosed Fan Cooled (Premium Efficient) |
| Nominal Flow | 116 GPM |
| Number of Stages | 9 |
| Phase | 3 Ph (Three Phase) |
| Pole | 2 |
| Quick Specs | 20HP 2/60/3 TEPE 360 9STG |
| Rotary | Carbon |
| Shaft Seal Material | Viton |
| Speed (RPM) | 3500 |
| Stationary | Silicon Carbide |
| Voltage | 208/230/460 |
