180H0059
180H0059
Regular price
$2,613.65
Sale price
$2,613.65
Regular price

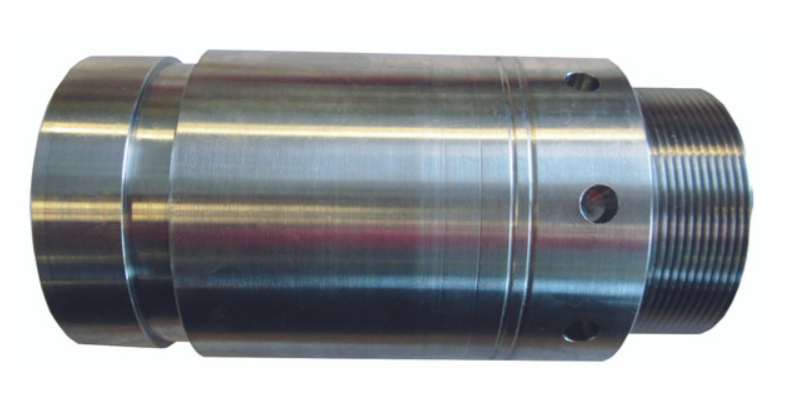

Check valve, VCM46 2½" Vic., APP21 - 46 & APP H WC 15-30 M60 tread 124 bar Super Duplex
Valve, VCM 46 M60 to 2.5 VIC
Opening pressure [barg]: 0.2, 2.9 psig, Inlet Connection: M60 x 1.5, Outlet connection: Victaulic 2.5 in, Rated flow [gpm]: 202, Rated flow [m³/h]: 45
| CE evaluated | Out of scope |
| Contain batteries | No |
| Description | VCM 46 M60 to 2.5 VIC |
| Inlet Connection | M60 x 1.5 |
| Opening pressure [barg] | 0.2 barg |
| Opening pressure [psig] | 2.9 psig |
| Operating pressure [barg] [Max] | 120 barg |
| Operating pressure [psig] [Max] | 1740 psig |
| Outlet connection | Victaulic 2.5 in |
| Pressure loss at max. Flow [barg] | 0.55 barg |
| Pressure loss at max. Flow [psig] | 8 psig |
| Product description | Check valves |
| Product group | Valve |
| Rated flow [gpm] | 202 gal/min |
| Rated flow [m³/h] | 45 m³/h |
| REACH Candidate List substances | No |
| Type | VCM 46 |
| Type designation | VCM 46 M60 to 2.5 VIC |
| UL evaluated | Out of scope |
