180H0058
180H0058
Regular price
$5,722.48
Sale price
$5,722.48
Regular price

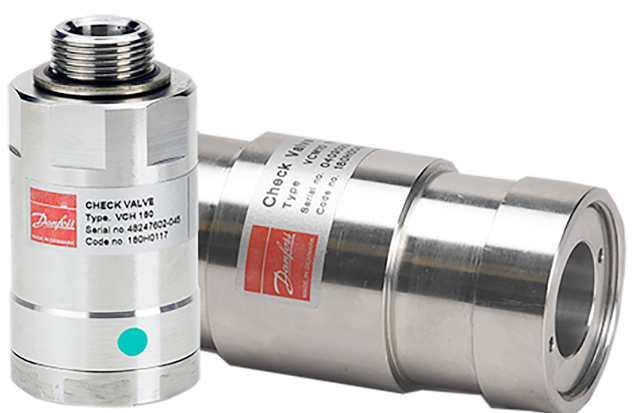

Check valve, VCM92 3" Vic., APP 53 - 92 Flange mount - 8 bolts M12 to 3" Vic Super Duplex
Valve, VCM 92 Flange to 3 VIC
Opening pressure [barg]: 0.1, 7.2 psig, Inlet Connection: Flange, Outlet connection: Victaulic 3 in, Rated flow [gpm]: 405, Rated flow [m³/h]: 92
| CE evaluated | Out of scope |
| Contain batteries | No |
| Description | VCM 92 Flange to 3 VIC |
| Inlet Connection | Flange |
| Opening pressure [barg] | 0.1 barg |
| Opening pressure [psig] | 7.2 psig |
| Operating pressure [barg] [Max] | 70 barg |
| Operating pressure [psig] [Max] | 1015 psig |
| Outlet connection | Victaulic 3 in |
| Pressure loss at max. Flow [barg] | 0.4 barg |
| Pressure loss at max. Flow [psig] | 7.8 psig |
| Product description | Check valves |
| Product group | Valve |
| Rated flow [gpm] | 405 gal/min |
| Rated flow [m³/h] | 92 m³/h |
| REACH Candidate List substances | No |
| Type | VCM 92 |
| Type designation | VCM 92 Flange to 3 VIC |
| UL evaluated | Out of scope |
