Valve, VCM 10 1.5 to 1.5 VIC

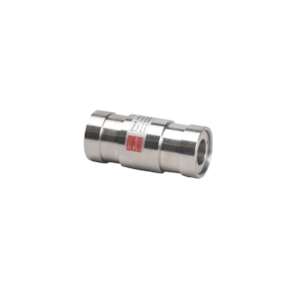

Check valve, VCM10 1½" Vic., inline 1½" Victaulic to 1½" Victaulic Duplex
Opening pressure [barg]: 0.3, 4.3 psig, Inlet Connection: Victaulic 1.5 in, Outlet connection: Victaulic 1.5 in, Rated flow [gpm]: 40, Rated flow [m³/h]: 11.5
| CE evaluated | Out of scope |
| Contain batteries | No |
| Description | VCM10 1½VI inline |
| Inlet Connection | Victaulic 1.5 in |
| Opening pressure [barg] | 0.3 barg |
| Opening pressure [psig] | 4.3 psig |
| Operating pressure [barg] [Max] | 80 barg |
| Operating pressure [psig] [Max] | 1160 psig |
| Outlet connection | Victaulic 1.5 in |
| Pressure loss at max. Flow [barg] | 1 barg |
| Pressure loss at max. Flow [psig] | 14.5 psig |
| Product description | Check valves |
| Product group | Valve |
| Rated flow [gpm] | 40 gal/min |
| Rated flow [m³/h] | 11.5 m³/h |
| REACH Candidate List substances | No |
| Type | VCM 10 |
| Type designation | VCM 10 1.5 to 1.5 VIC |
| UL evaluated | Out of scope |
